ATRAK

Information Data Processing

ATM Executive / Planning / Bypass system

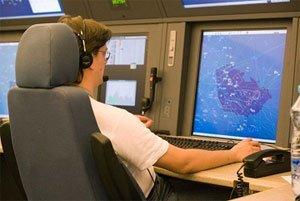

ATRAK-EC/PC® is an executive / planning control Radar and Flight Plan data processing system producing a complete Controller Working Position (CWP) display system.



ATRAK-EC/PC processes meteorological data, radar weather information and automated weather-observing system. The Planning control system incorporates EFDM™, Electronic Flight Data Management, a “paperless” functional block environment for the operation of electronic strips. EFDM comprises extended electronic label functionality and tabular flight display information. ATRAK-EC/PC integrates with the ATRAK Aeronautical Information Management system. Both systems can be seamlessly controlled using a single keyboard and mouse. This is known as system interoperability where the mouse cursor can move between the two screens without the need to switch systems.

  • A fully functional ATC executive system or as a planning control and fall-back system alongside 3rd party executive systems.
  • A fully functional ATC system for the duration of executive system unavailability.
  • An integrated part of 3rd party ATM systems, providing Aircraft position and traffic flow display function

ATRAK - EC/PC Executive and Planning Control system key components

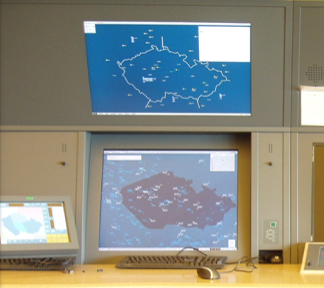

  • Planning controller display (installed on ACC and APP rooms)
  • Integrates with popular radar track data processors (RDP)
  • Flight plan data from Flight data processing systems
  • Radar weather information
  • EFDM full electronic paperless flight strips
  • Receives & processes track data from up to 3 radars, formats ASTERIX Cat.2, ASTERIX Cat.3, AIRCAT.
  • Receives Flight Plan data from external FDP system
  • Performs Track-flight data correlation
  • Produces ASTERIX Cat.62 output for external users (ETFMS)

Aircraft position and traffic flow

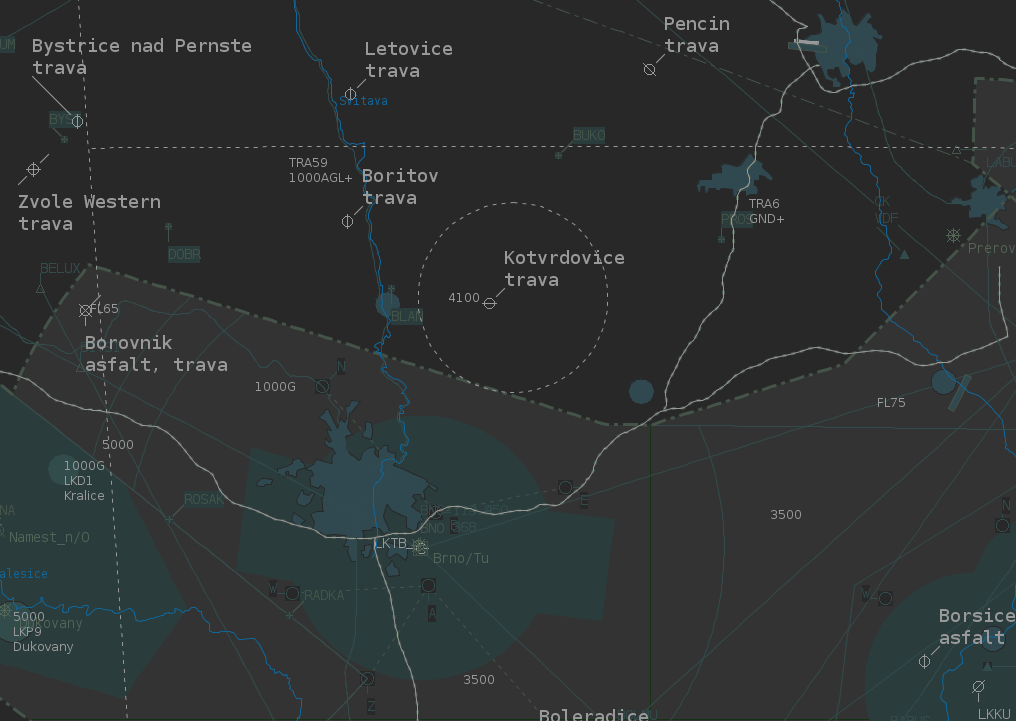

  • Display Radar tracks presentation and functions
  • Selection of one of three radar data sources
  • Provides Basic air situation display objects and functionalities
  • Provides Flight Data presentation in the form of lists and windows
  • Displays the radar weather data in three projections (views)
  • Displays Airport Meteorological data

Weather processing

  • Reception of radar weather data
  • Reception of Airport Meteorological data

System Supervision

  • Based on SNMP protocol
  • Allows local and 3rd party
  • Displays Radar tracks system supervision and control
